UCT205-16 TAKE-UP BEARING-NARROW SLOT-SET SCREW LOCKING

$14.50 USD
Tax included.
{price}% OFF

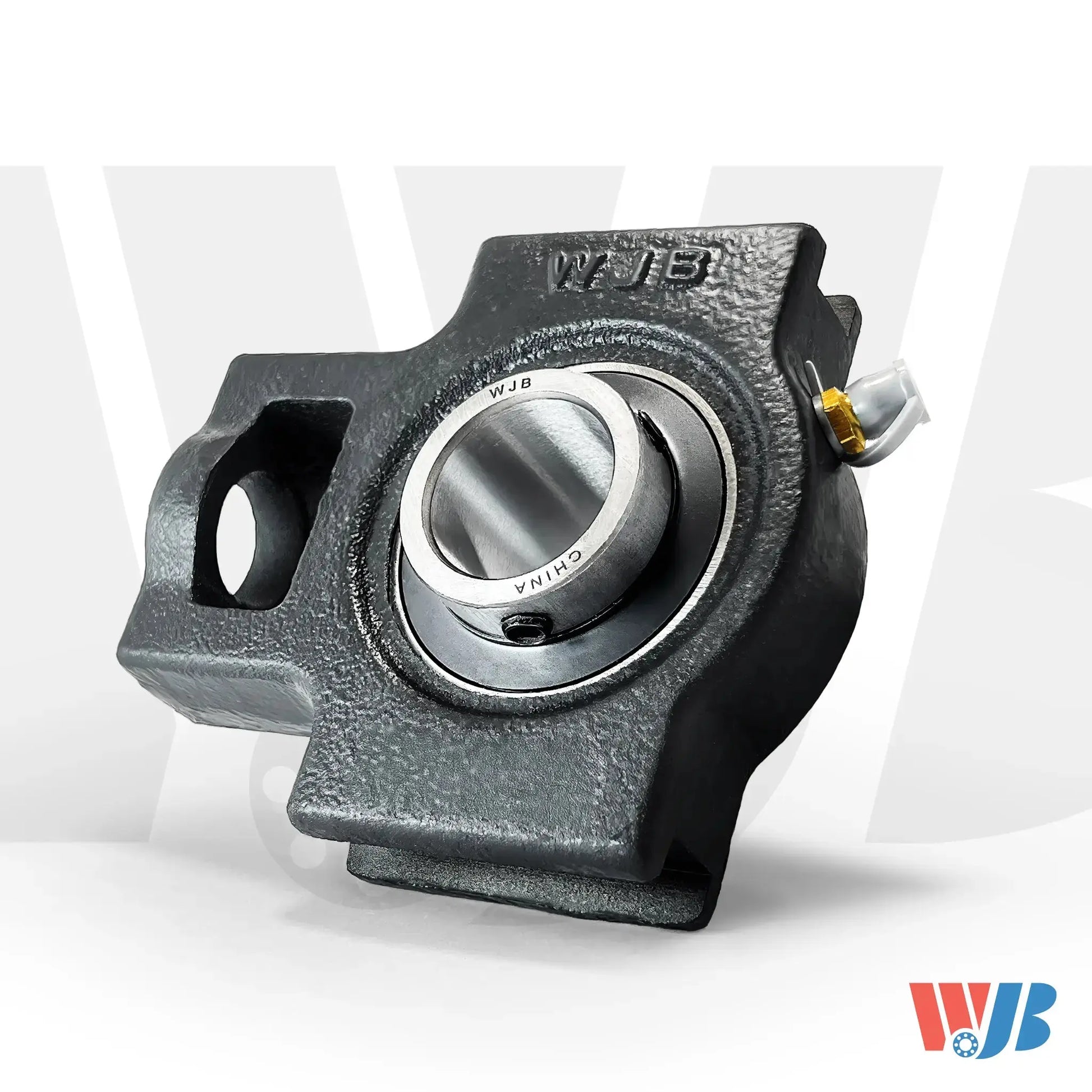

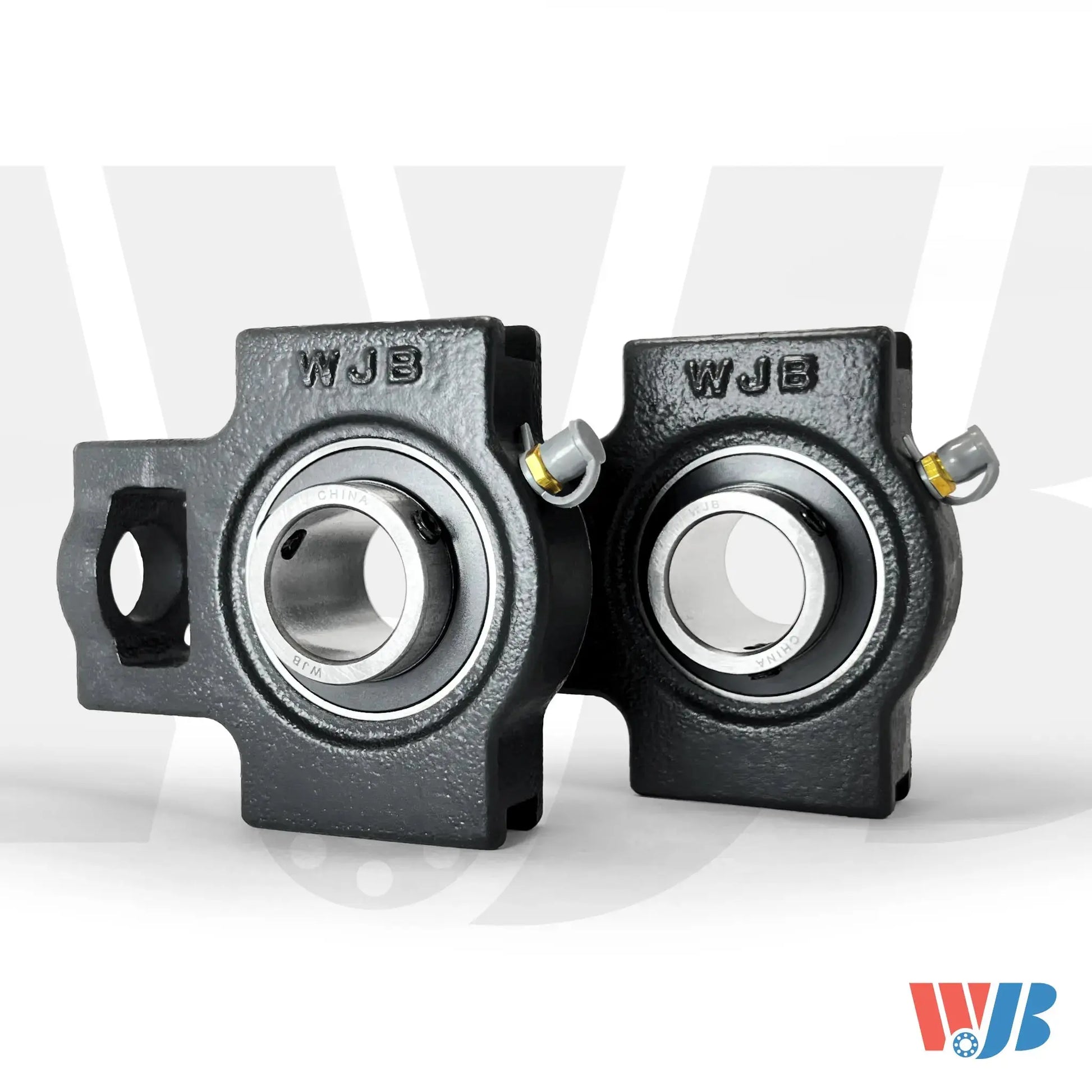

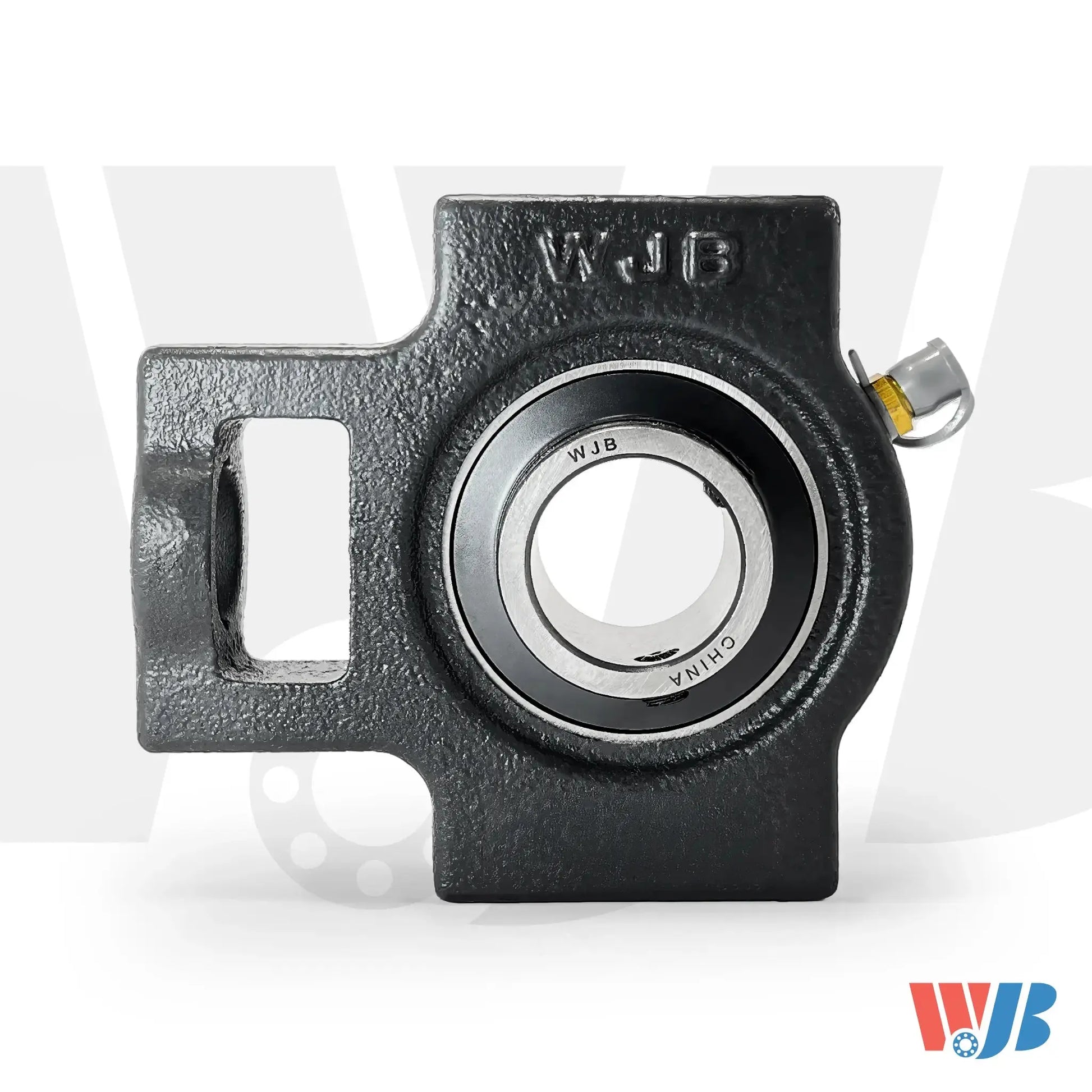

The UCT205-16 Take-Up Bearing with a 1 inch bore diameter is a compact bearing unit designed for applications where precise tension adjustment and shaft alignment are essential. With its narrow-slot housing, this bearing is suitable for normal-duty applications where space and accuracy are prioritized.

Cross Reference (Similar) Items: NSTU-SC-100, 125052

Dimensions are in Inch
WJB Unit
No.
Shaft Diameter (d) Housing Length (a) Housing Width (b) Housing Height (W) Base to Center of Shaft ( h ) Mounting Hole Dia. (s) Slot Width (k)
UCT205-16 1" 3.504 2.008 3.819 2.441 0.748 0.472
