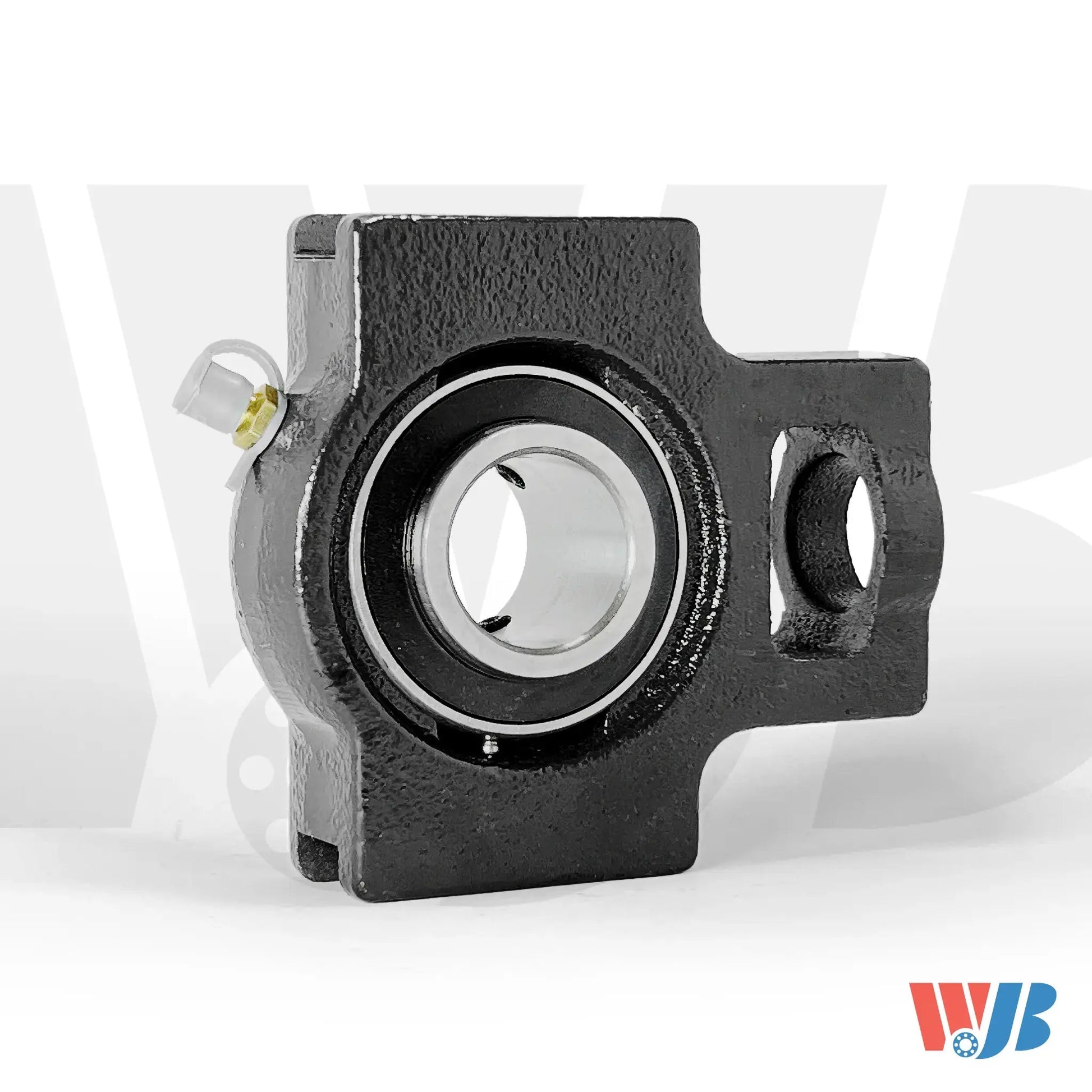

UCST207-22 TAKE-UP BEARING-WIDE SLOT-SET SCREW LOCKING

$22.00 USD
Tax included.
{price}% OFF

The UCST207-22 Take-Up Bearing is a high-performance bearing designed for applications that require adjustable shaft positioning, such as in tensioning systems and conveyors and other normal duty applications. With a bore diameter of 1-3/8 inches, this bearing offers secure mounting and easy alignment adjustments.

Cross Reference (Similar) Items: WSTU-SC-106, 125361

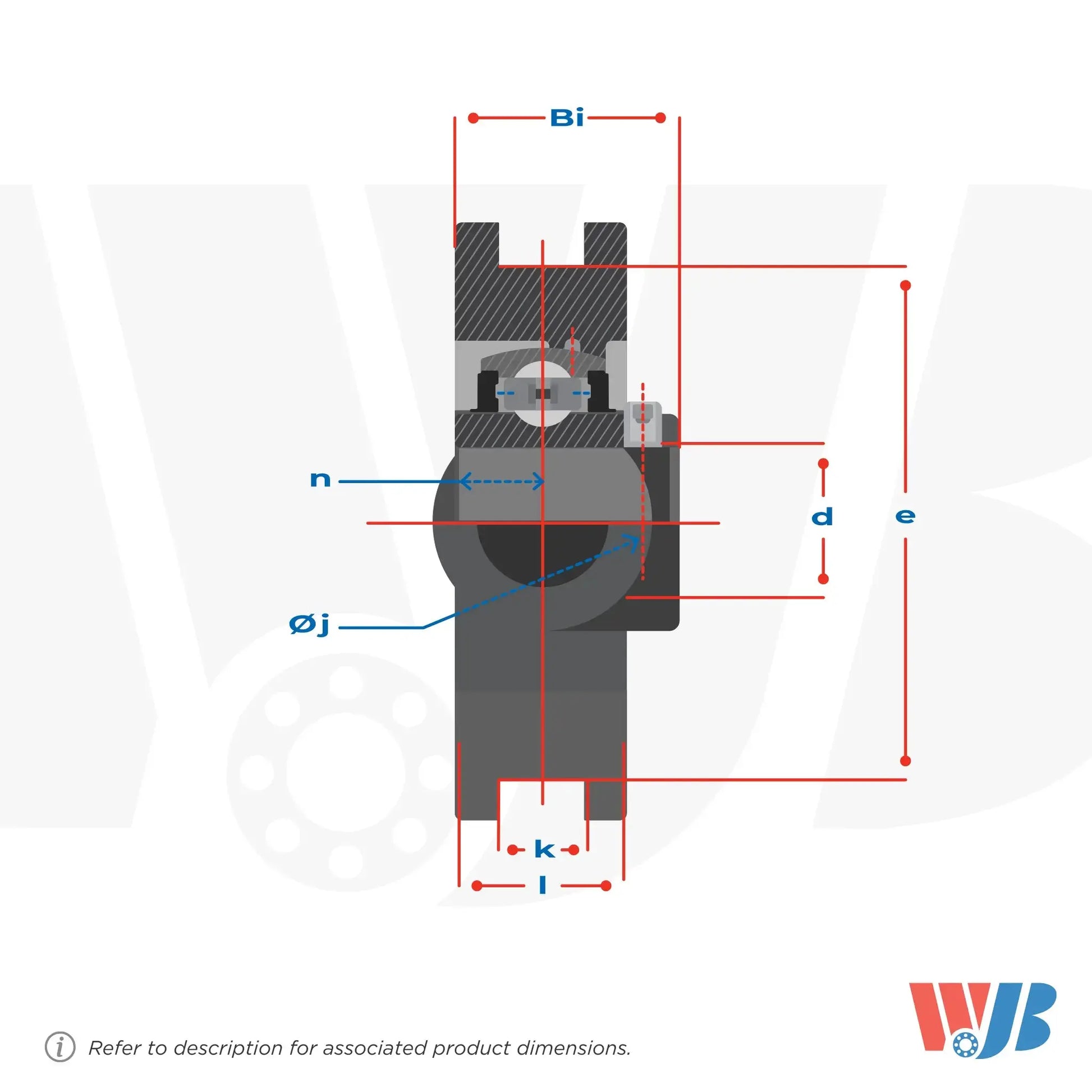

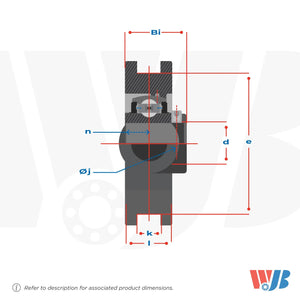

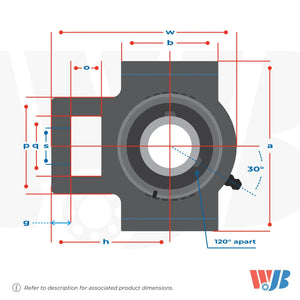

Dimensions are in Inch
WJB Unit
No.
Shaft Diameter (d) Housing Length (a) Housing Width (b) Housing Height (W) Base to Center of Shaft ( h ) Mounting Hole Dia. (s) Slot Width (k)
UCST207-22 1-3/8" 4.016 2.520 5.079 3.071 0.866 0.531
